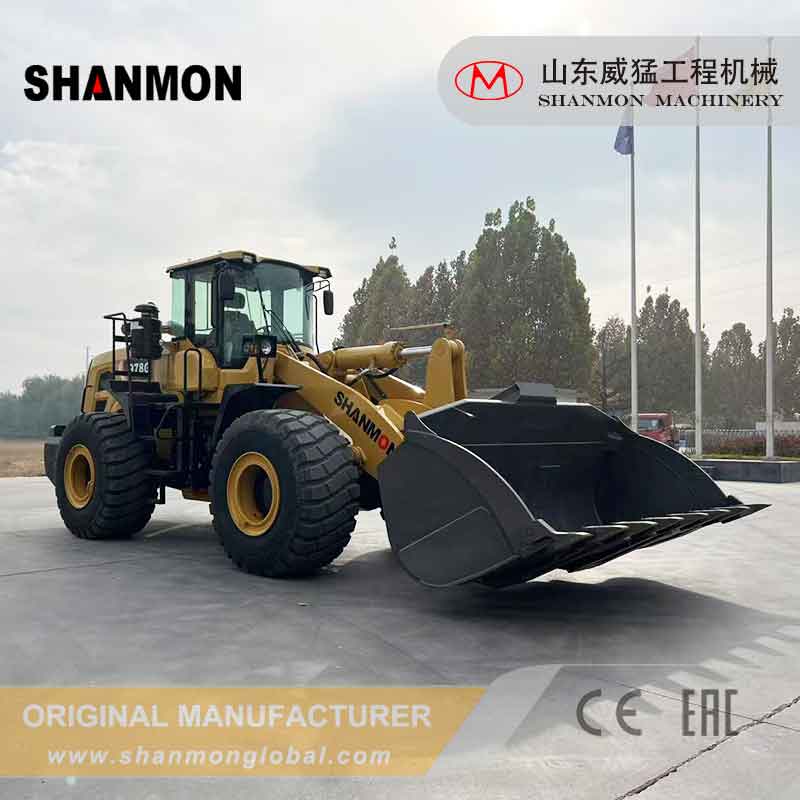

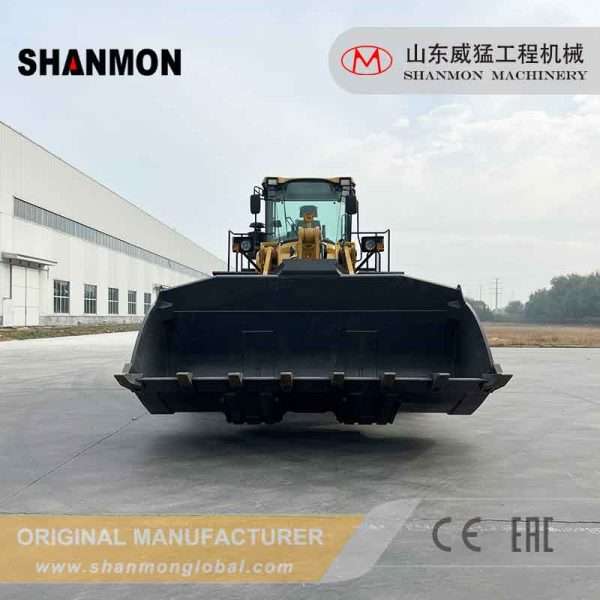

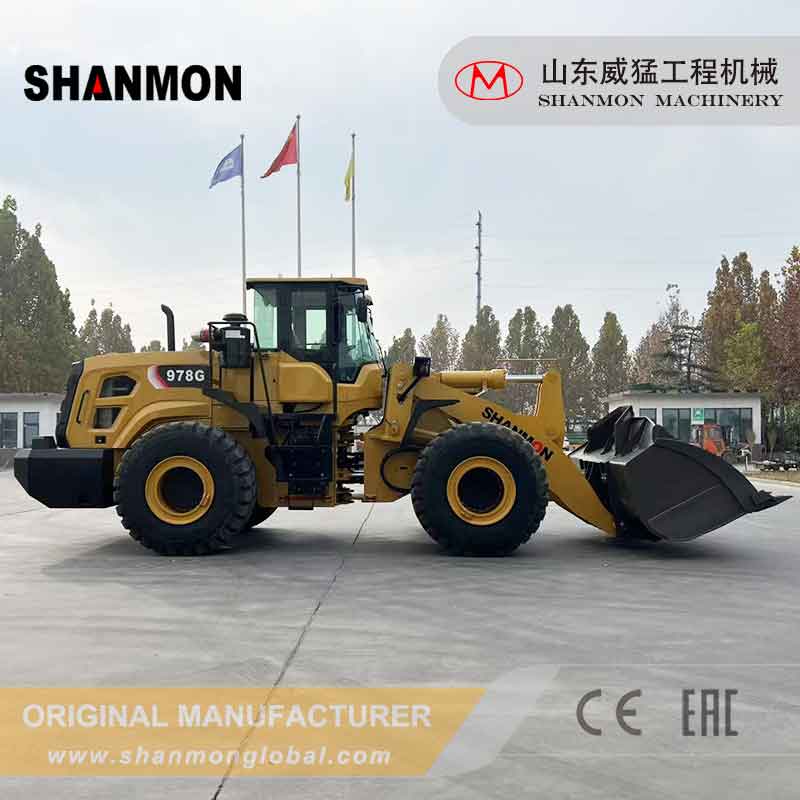

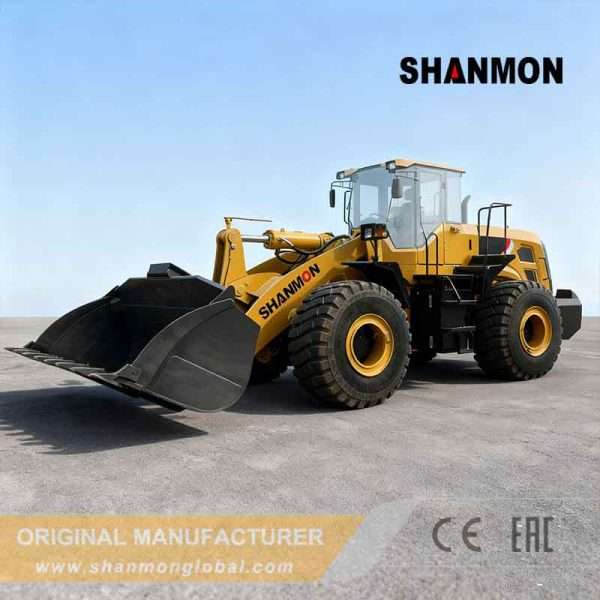

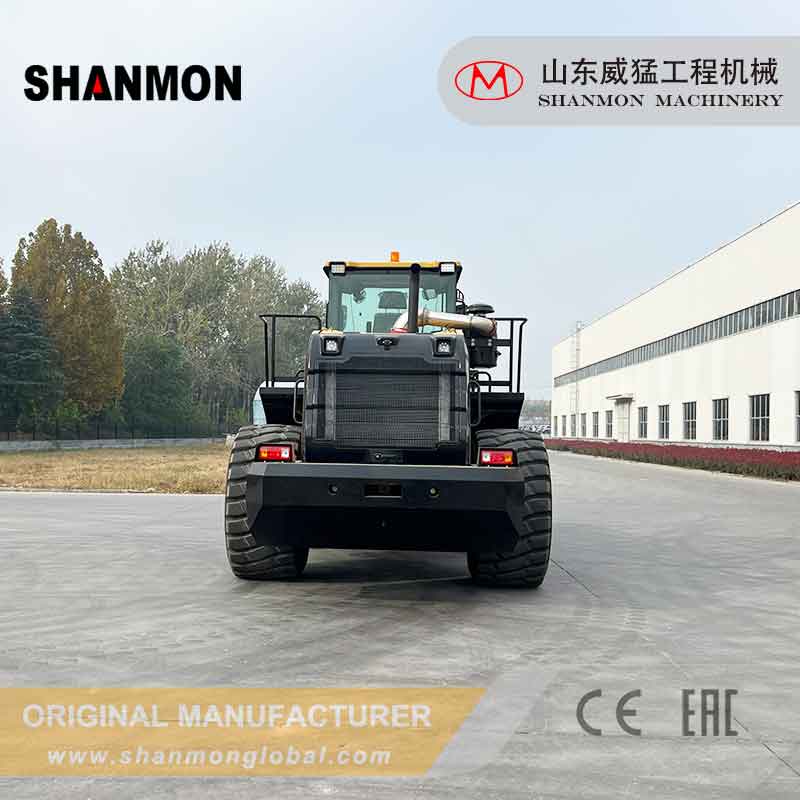

Meet the Shanmon 978G diesel payloader, built for heavy-duty work. Its powerful diesel engine delivers consistent performance, and it operates without complex batteries. This payloader wheel loader is perfect for demanding sites like quarries and large construction projects.
Our payloader features full hydraulic pilot controls. This system is lightweight and flexible, so operators enjoy excellent precision. It makes fine movements easy and significantly reduces driver fatigue.
The advanced work system uses a flow amplification valve for easy steering. Furthermore, it combines constant and variable flow, which saves a significant amount of energy. This smart design leads to lower fuel costs and higher efficiency.
A parallel multi-way valve allows the boom and bucket to work together. You can perform composite actions, so your work cycles become much faster. This results in more productivity with less effort on every job.
We also include an automatic bucket leveling function. It positions the bucket correctly, so the driver does not need to make manual adjustments. This smart feature saves time and makes operations much more convenient.
A high-power turbocharged engine pairs perfectly with the ZF230 automatic transmission. This powerful combination ensures reliable performance, and it also improves fuel economy. You get strong power for big loads while spending less on operation.
The heavy-duty drive axle is built for extreme conditions. It has a large gear modulus for superior strength, because it is designed for big workloads. This robust construction provides excellent durability and minimizes downtime.
This reliable payloader is ideal for material handling in many industries. Its simple design ensures easy maintenance, and its durable parts last for years. Choose the Shanmon 978G payloader for powerful, efficient, and dependable performance on your site.
Dimensions
| Performance | Rated load | 7500KG |
| Operating weight | 23000KG | |
| Rated bucket capacity | 4.5m³ | |
| Max. tractive force | 200KN | |
| Max. breakout force | 210KN | |
| Max. grade ability | 30° | |
| Max. dump height | 3525mm | |
| Max. dump reach | 1290mm | |
| Overall dimension(L×W×H) | 9500×3250×3400mm | |
| Min. turning radius | 6600mm | |
| Engine | Model | Weichai WP10G286E301 |
| Type | Inline, water-cooled, electric controlled high-pressure common rail | |
| Cylinder-Inner diameter×stroke | 6-126×130mm | |
| Rated power | 210KW | |
| Maximum torque | 1185N.m | |
| Transmission system | Torque converter | ZF230 |
| Gearbox mode | Automated mechanical transmission | |
| Gear shift | 4 forward shift and 3 reverse shift | |
| Maximum speed | 40km/h | |
| Drive axles | Wheel base | 3500mm |
| Wheel tread | 2400mm | |
| Ground clearance | 450mm | |
| Hydraulic system | System working pressure | 24Mpa |
| Fuel tank capacity | 180L | |
| Boom lifting time | 6±0.25S | |
| Total time | 10±0.5S | |
| Self-levelling bucket | yes | |
| Brake system | Service brake | Air-over-oil caliper disc brake on 4 wheels |
| Parking brake | Manual brake | |
| Tires | Tire specification | 750/65R25 |
| Front tire pressure | 0.65Mpa | |
| Rear tire pressure | 0.55Mpa |
FAQ
Q: How long is the delivery time of Shanmon Machinery?
A: Normally, we will finish the production within 30 days, in peak season, the production time will be longer.
Q: Can you customise and design according to customers’ requirements?
A: We are a professional manufacturer with many years of rich experience, and our owner also has more than 25 years of related experience. Therefore, we will try our best to meet all kinds of special requirements of our customers on the basis of safety and science. The colours can be painted according to customers’ needs.
Q: What is your machine used for?
A: widely used in off-highway outdoor sites, such as large open pit mines, water conservancy projects, transporting coal mines, metal mines and sand stones.
Q: How about the service of your company?
A: 24 Hours Online service. All machines have one year warranty and Whole life Technology support to make sure your machine work well.
